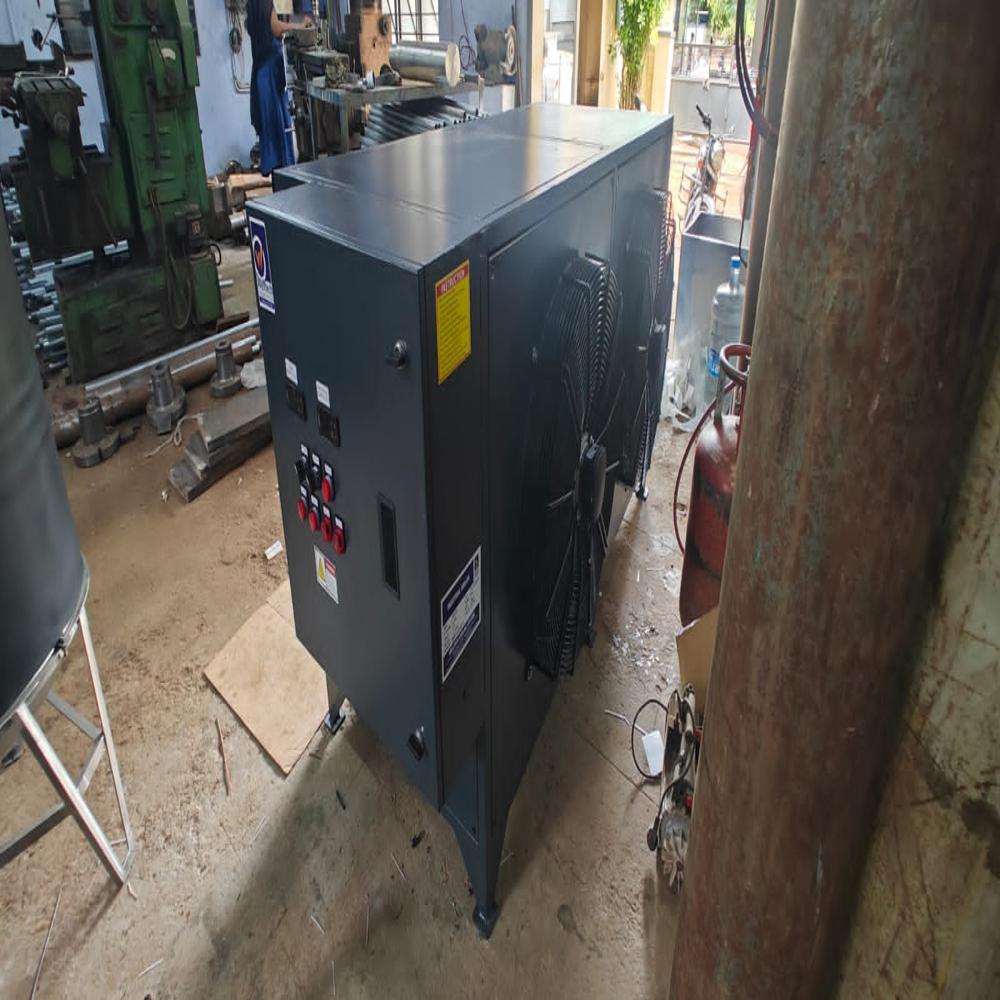

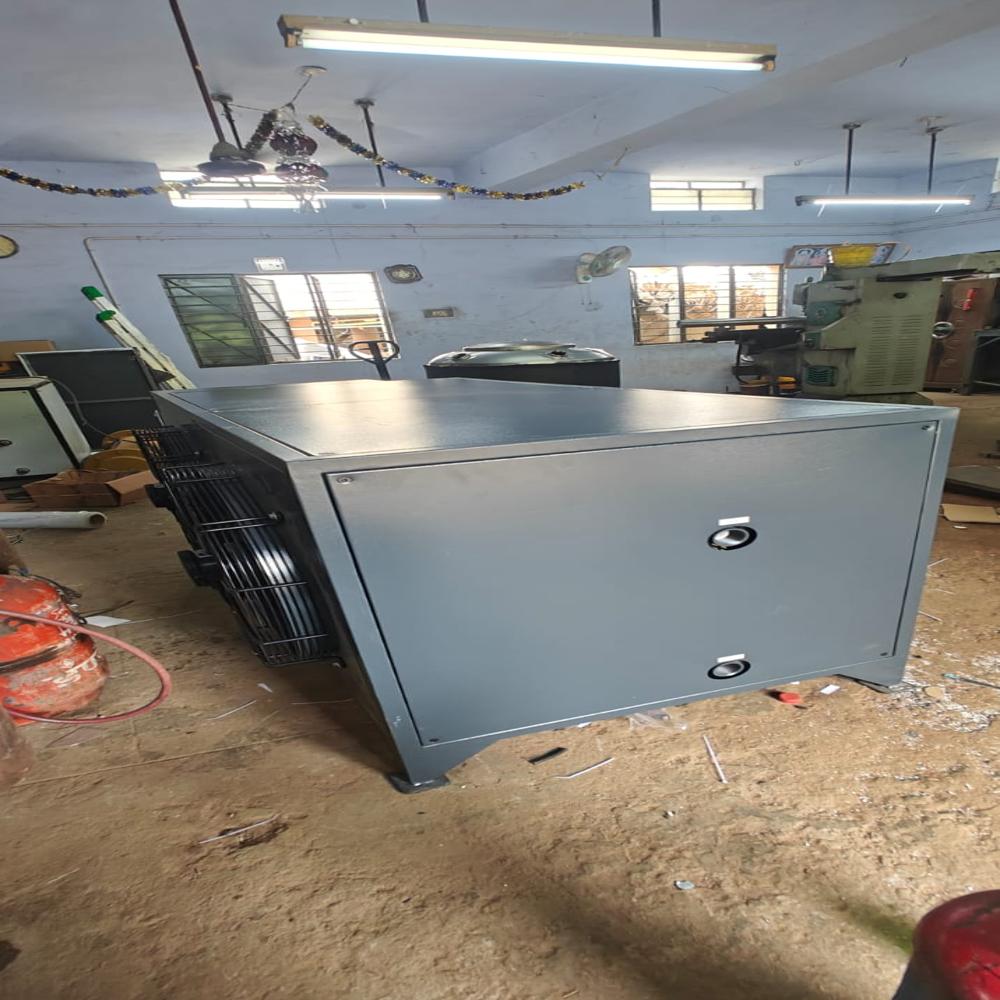

7TR AIR COOLED PROCESS CHILLER

Product Description

A 7TR (7 Ton Refrigeration) air-cooled process chiller isa piece of industrial equipment that removes heat from a process, maintaining a specific temperature by circulating chilled water.It uses air to cool the refrigerant, eliminating the need for a separate cooling tower or water source.These chillers are designed for industrial applications where precise temperature control is crucial, such as in manufacturing processes or for cooling equipment.

Key Features and Components:

• Air-Cooled Condenser: The primary cooling mechanism, where heat is transferred from the refrigerant to the surrounding air.
• Refrigerant: A substance that absorbs and releases heat during the cooling process.
• Compressor: Increases the pressure and temperature of the refrigerant vapor, enabling efficient heat transfer.
• Evaporator: Where the chilled water is cooled by the refrigerant.
• Water Circuit: A closed-loop system circulating chilled water to the process or equipment requiring cooling.
• Control System: Regulates temperature, flow, and other parameters for optimal performance.
• Optional Features: May include features like variable speed drives, acoustic enclosures, and remote monitoring capabilities.

How it works:

1. 1.Heat Absorption:

The refrigerant absorbs heat from the process fluid in the evaporator.

2. 2.Compression:

The refrigerant vapor is compressed by the compressor, increasing its temperature and pressure.

3. 3.Condensation:

The high-pressure, high-temperature refrigerant vapor flows to the condenser, where it releases heat to the air.

4. 4.Expansion:

The refrigerant expands, reducing its pressure and temperature, and then returns to the evaporator to repeat the cycle.

5. 5.Chilled Water Circulation:

The chilled water, cooled in the evaporator, is circulated to the application needing cooling.

Applications:

• Manufacturing Processes: Maintaining precise temperatures in injection molding, plastic extrusion, and other processes.
• HVAC Systems: Providing cooling for commercial and industrial buildings.
• Laboratories: Maintaining critical temperature environments for research and testing.
• Food and Beverage Industry: Cooling products and maintaining storage temperatures.
