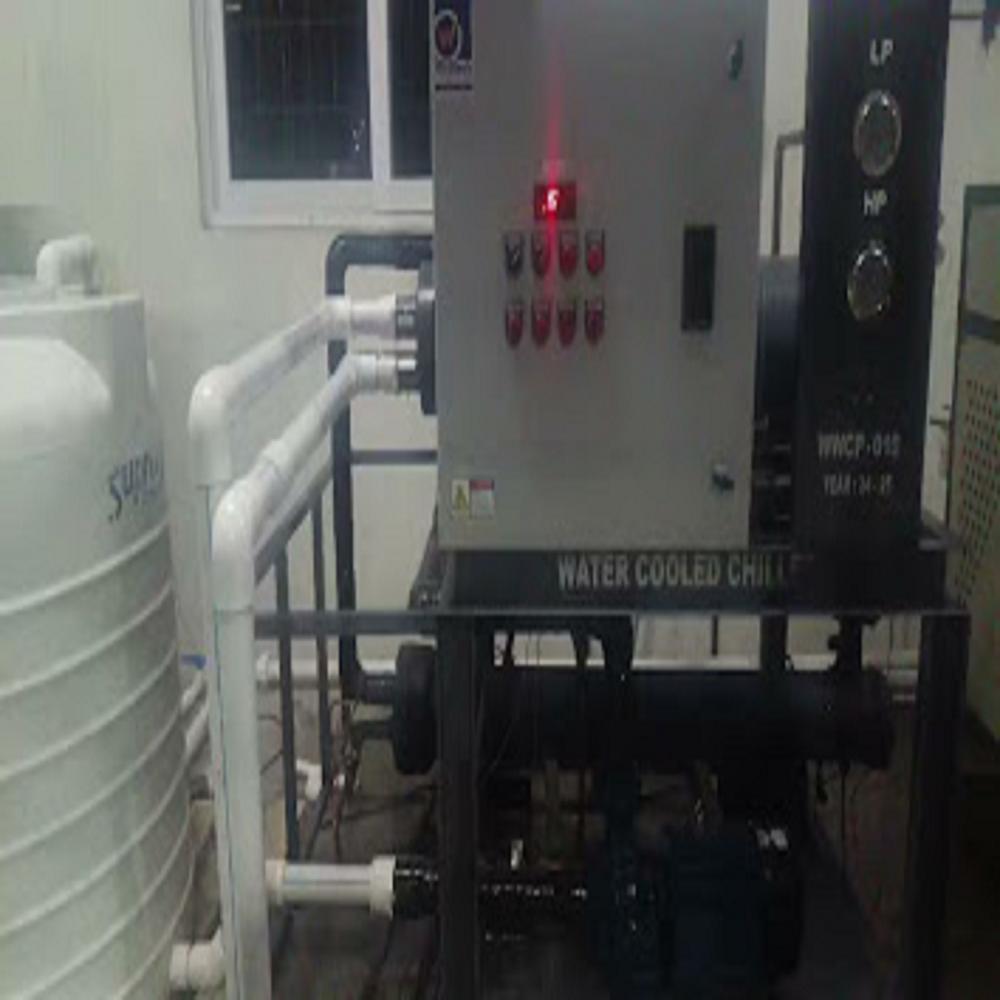

20TR WATER COOLED WATER CHILLER
680000.0 INR/Number
Product Details:
- Product Type WATER COOLED
- Color GREY,WHITE
- Material Metal
- Usage INDUSTRIAL
- Length 1655 Millimeter (mm)
- Width 1345 Millimeter (mm)
- Size 1655MM X 905MM X 1345MM
- Click to View more
X
20TR WATER COOLED WATER CHILLER Price And Quantity
- 1 Number
- 680000.0 INR/Number
20TR WATER COOLED WATER CHILLER Product Specifications
- 900 Kilograms (kg)
- 202LPM
- 460V / 3 Phase / 50 or 60 Hz
- 1655MM X 905MM X 1345MM
- New
- 905 Millimeter (mm)
- GREY,WHITE
- WATER COOLED
- 1
- WATER COOLED
- 1345 Millimeter (mm)
- SCROLL/SCREW
- 1655 Millimeter (mm)
- Metal
- INDUSTRIAL
- 460 Volt (v)
20TR WATER COOLED WATER CHILLER Trade Information
- Cash in Advance (CID)
- 3 Number Per Month
- 3 Week
- No
- All India
Product Description
A 20-ton water-cooled water chiller is a system that uses water as a cooling medium to remove heat from a process or space, typically for industrial or large-scale HVAC applications. It uses a refrigerant cycle to transfer heat from the process water to the cooling water, which is then dissipated to the environment, often via a cooling tower.
Key Components and Functioning:
-
The heart of the chiller, it compresses the refrigerant, raising its temperature and pressure.
-
The hot, high-pressure refrigerant gas is passed through the condenser, where it releases heat to the cooling water (from a cooling tower, geothermal source, or building's chilled water system), condensing back into a liquid.
-
The high-pressure liquid refrigerant passes through an expansion valve, which reduces its pressure and temperature, causing some of it to vaporize.
-
The cold, low-pressure refrigerant vapor then flows through the evaporator, where it absorbs heat from the process water, cooling it down.
-
Chilled water is circulated to the application (e.g., injection molding machine, data center) and then returns to the chiller to be cooled again.
-
The cooling water loop removes heat from the condenser and typically uses a cooling tower to dissipate the heat to the atmosphere.
Features and Applications:
-
Water-cooled chillers are well-suited for applications with high heat loads due to their efficient heat transfer capabilities.
-
They can be very efficient, especially in situations where the cooling water temperature is relatively low.
-
Many modern water-cooled chillers utilize environmentally friendly refrigerants.
-
Water-cooled chillers are used in a wide range of industries, including HVAC systems, data centers, industrial processes (e.g., plastic molding, metal processing), and cold storage.
Benefits:
-
Water-cooled chillers can maintain very precise temperature control, crucial for many industrial processes.
-
Compared to air-cooled chillers, water-cooled chillers can offer better energy efficiency, especially in areas with cool ambient temperatures, according to industrial equipment resources.
-
Water-cooled chillers are known for their reliability and long lifespan, particularly when properly maintained.
