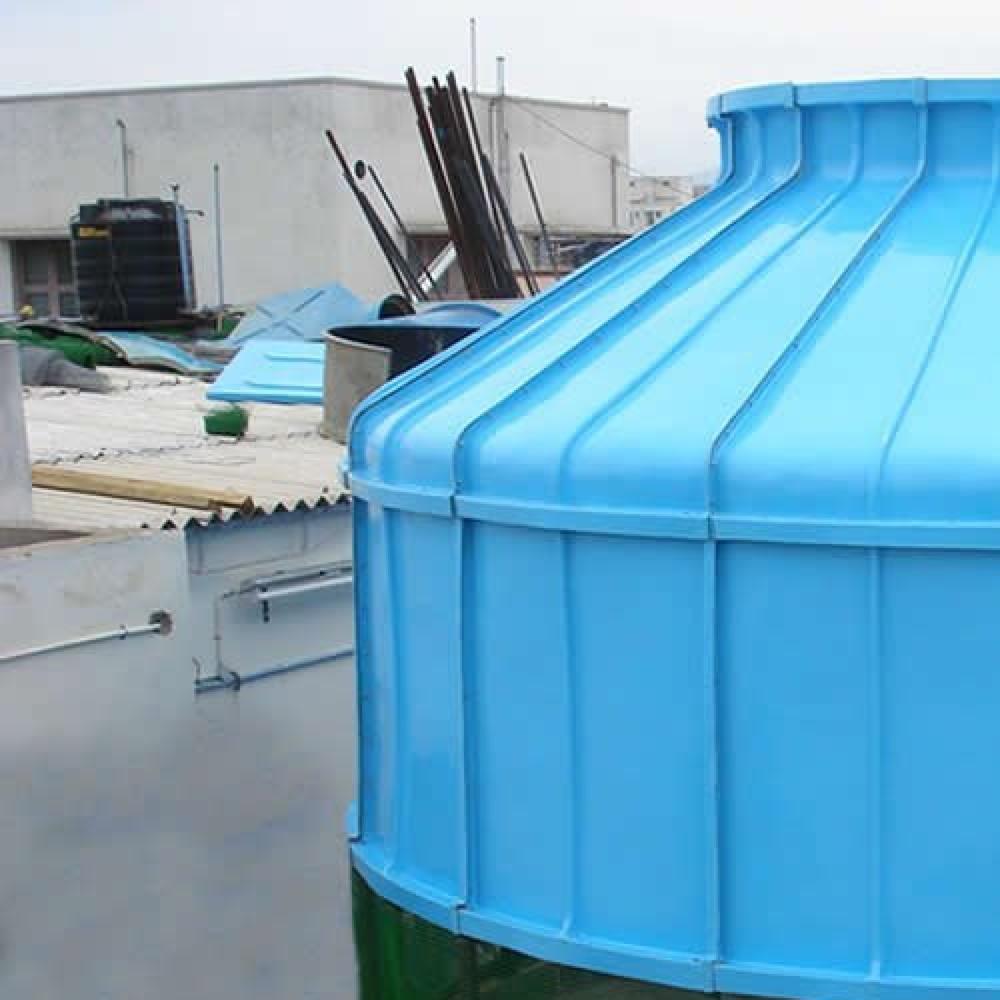

400TR Round Type Cooling tower Induced draft Counter flow cooling tower

தயாரிப்பு விளக்கம்

A 400TR round, induced-draft, counter-flow cooling tower is a heat exchanger that cools water by evaporation, with hot water flowing down through fill media while air flows upwards, induced by a fan at the top, maximizing heat transfer.

Here's a more detailed description:

Key Features:

• Cooling Capacity: 400 Tons of Refrigeration (TR).
• Type: Round, induced draft, counter-flow.
• Design:
• Counter-flow: Hot water flows downwards, and air flows upwards, maximizing contact and heat transfer.
• Induced Draft: A fan at the top of the tower draws air upwards, creating the draft.
• Function:
• Hot water is distributed over fill media (e.g., PVC).
• As water flows down, it comes into contact with upward-flowing air.
• Some water evaporates, cooling the remaining water.
• The cooled water collects in a basin at the bottom.
• The air, now saturated with water vapor, is exhausted from the top of the tower.
• Materials: Often constructed from Fiberglass Reinforced Plastic (FRP) for corrosion resistance and durability.
• Applications: Industrial applications, power plants, chemical plants, oil refineries, and building cooling.
• Components:
• Fill Media: PVC or other materials to maximize surface area for heat transfer.
• Distribution System: Sprinklers or nozzles to distribute water evenly.
• Fan: Axial fan located at the top of the tower.
• Drift Eliminators: To prevent water droplets from being carried out of the tower.
• Basin: To collect the cooled water.
• Casing/Shell: Encloses the tower structure
