Basic components of cooling tower

Product Description

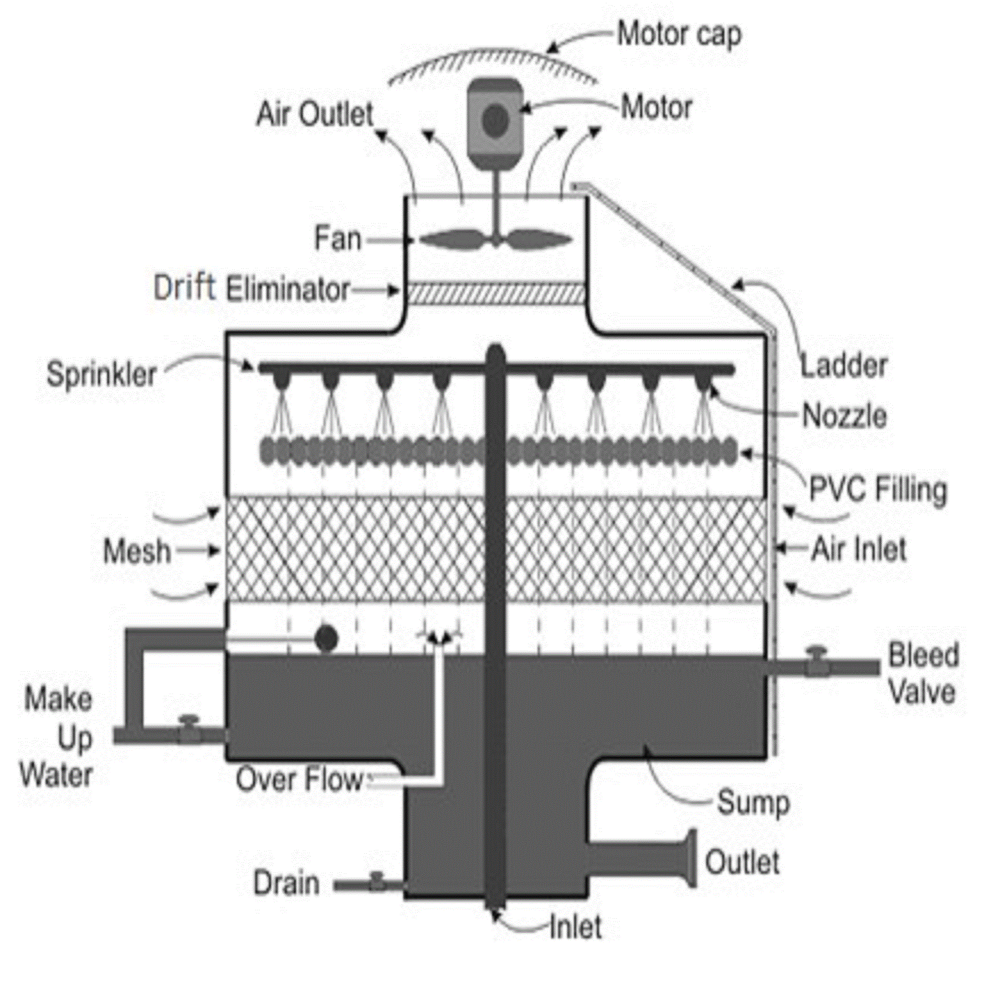

A cooling tower's basic components include thestructure, fill, water distribution system, fans, drift eliminators, and a cold water basin, all working together to cool water by evaporation.

Here's a more detailed breakdown:

1. Structure/Casing:

• Function:Provides the enclosure and support for the cooling tower's components.
• Materials:Can be made of concrete, wood, or fiberglass.
• Purpose:Protects the internal components and directs airflow.

2. Fill:

• Function:Increases the surface area for water and air contact, maximizing heat transfer.
• Types:Splash fills and film fills.
• Purpose:Facilitates evaporation and cooling.

3. Water Distribution System:

• Function:Distributes hot water evenly over the fill.
• Components:Nozzles, pipes, and sometimes open channels.
• Purpose:Ensures efficient heat transfer throughout the tower.

4. Fans:

• Function:Draw air through the tower, promoting evaporation and cooling.
• Types:Can be mechanical draft (forced or induced) or natural draft.
• Purpose:Enhance airflow and cooling efficiency.

5. Drift Eliminators:

• Function:Prevent water droplets from escaping the tower with the exhaust air.
• Materials:Typically made of FRP or PVC.
• Purpose:Reduce water loss and potential environmental impact.

6. Cold Water Basin:

• Function:Collects the cooled water and directs it back to the system.
• Purpose:Provides a reservoir for the cooled water.
